how can I deploy an application in SCCM 2007 SP1 step by step guide

Step 1. Create the Package

In this example we are going to deploy Firefox (Firefox Setup 3.0.1.exe).

To make updating versions of Firefox easier (this will be covered later in this guide) we will rename the file from Firefox Setup 3.0.1.exe to Firefox.exe. We then copy that file to d:\sccm_packages\apps\firefox (your path may vary).

Startup your Configuration Manager console (gui) and click on Site Database/Computer Management/Software Distribution and then select Packages in the left pane.

Resized to 63% (was 1102 x 687) - Click image to enlargeAttached Image: monthly_09_2008/post-1-1221121177.jpg


right click on packages and choose New/package a wizard will begin

Attached Image: monthly_09_2008/post-1-1221129990.jpg

fill in the package properties as you wish in General

Resized to 98% (was 714 x 551) - Click image to enlargeAttached Image: monthly_09_2008/post-1-1221137121.jpg


For Data Source, place a check in This package contains source files and click on Set to specify the source of the sccm package

Resized to 98% (was 714 x 551) - Click image to enlargeAttached Image: monthly_09_2008/post-1-1221137814.jpg


change the source directory location to Local drive on site server and browse to the path
of your Firefox package next click ok and then set the schedule to update the distribution points

Resized to 98% (was 714 x 552) - Click image to enlargeAttached Image: monthly_09_2008/post-1-1221248391.jpg


set your Data Access options (I left them as default)

Resized to 98% (was 714 x 552) - Click image to enlargeAttached Image: monthly_09_2008/post-1-1221138642.jpg


set the priority for the package in distribution settings to high

Resized to 98% (was 714 x 552) - Click image to enlargeAttached Image: monthly_09_2008/post-1-1221138945.jpg


keep the MIF properties as default

Resized to 98% (was 714 x 552) - Click image to enlargeAttached Image: monthly_09_2008/post-1-1221139077.jpg


set the Security rights for the package class and instance rights

Resized to 98% (was 714 x 552) - Click image to enlargeAttached Image: monthly_09_2008/post-1-1221139424.jpg


review the summary of choices you made

Resized to 98% (was 714 x 552) - Click image to enlargeAttached Image: monthly_09_2008/post-1-1221249057.jpg


and click next to install the package, you'll then see a confirmation that it's installed

Resized to 98% (was 714 x 552) - Click image to enlargeAttached Image: monthly_09_2008/post-1-1221248490.jpg

Microsoft MVP 2010 - ConfigMgr
My linkedin profile at > linkedin.com
Follow me on Twitter > ncbrady
Follow windowsnoob.com on Twitter > windowsnoob
My blog on myITforum
0

#2 User is offline   anyweb


  • Administrator
  • PipPipPip
  • Group: Root Admin
  • Posts: 3,252
  • Joined: 28-September 06
  • Gender:Male
  • Location:Sweden
  • Interests:Deploying Operating systems and more with System Center Configuration Manager
Posted 12 September 2008 - 07:33 AM
Step 2. Create a Program for the package


In Configuration Manager console, expand our newly added Mozilla Firefox package and right click on Program, choose New from the list of options

Attached Image: monthly_09_2008/post-1-1221204418.jpg

fill in the program details (we are using the -ms switch for installing firefox silently, for a list of application silent switches please see this page on MSFN.org


Resized to 98% (was 714 x 530) - Click image to enlargeAttached Image: monthly_09_2008/post-1-1221204807.jpg


choose All X86 Windows Vista and All X86 Windows XP for the program requirements

Resized to 98% (was 714 x 530) - Click image to enlargeAttached Image: monthly_09_2008/post-1-1221205126.jpg


set the environment variables (choose Program can run whether or not the user is logged on)

Resized to 98% (was 714 x 530) - Click image to enlargeAttached Image: monthly_09_2008/post-1-1221205265.jpg


leave the advanced settings as they are

Resized to 98% (was 714 x 530) - Click image to enlargeAttached Image: monthly_09_2008/post-1-1221205549.jpg


our package is not a Windows Installer package so we can ignore this page also

Resized to 98% (was 714 x 530) - Click image to enlargeAttached Image: monthly_09_2008/post-1-1221205648.jpg


place a checkmark in the MOM alert option if the program fails

Resized to 98% (was 714 x 530) - Click image to enlargeAttached Image: monthly_09_2008/post-1-1221205721.jpg


review the program summary and click next to proceed

Resized to 98% (was 714 x 530) - Click image to enlargeAttached Image: monthly_09_2008/post-1-1221205796.jpg


click Close to finish.

Resized to 98% (was 714 x 530) - Click image to enlargeAttached Image: monthly_09_2008/post-1-1221206319.jpg

Microsoft MVP 2010 - ConfigMgr
My linkedin profile at > linkedin.com
Follow me on Twitter > ncbrady
Follow windowsnoob.com on Twitter > windowsnoob
My blog on myITforum
0

#3 User is offline   anyweb


  • Administrator
  • PipPipPip
  • Group: Root Admin
  • Posts: 3,252
  • Joined: 28-September 06
  • Gender:Male
  • Location:Sweden
  • Interests:Deploying Operating systems and more with System Center Configuration Manager
Posted 12 September 2008 - 08:22 AM
Step 3. Advertise the Package

Once a software distribution package has been created, along with programs to tell client computers what to do with the package, you need to advertise the program that you want the clients to run. Advertising the program makes a program available to a specified collection of clients.

In the Configuration Manager console, navigate to System Center Configuration Manager / Site Database / Computer Management / Software Distribution / Advertisements, right click on Advertisements and choose New Advertisement.

Attached Image: monthly_09_2008/post-1-1221207305.jpg

fill in your details for the advertisemet and click on the browse buttons to choose the package/program/collection as nescessary:


Note: In the screenshot below, the Firefox Application is going to be Advertised to the All Systems collection and all sub collections, in a LAB environment that is ok but in a production environment you would want to carefully plan what computers (or users) would get the software, you can do that by using this method (recommended).


Resized to 98% (was 714 x 550) - Click image to enlargeAttached Image: monthly_09_2008/post-1-1221207709.jpg


when prompted about distribution points, click yes (we will update the distribution point later)

Attached Image: monthly_09_2008/post-1-1221208490.jpg

set the advertisement schedule

Resized to 98% (was 714 x 550) - Click image to enlargeAttached Image: monthly_09_2008/post-1-1221210029.jpg


and click on the yellow star to set mandatory settings

Attached Image: monthly_09_2008/post-1-1221210206.jpg

review the changes

Resized to 98% (was 714 x 550) - Click image to enlargeAttached Image: monthly_09_2008/post-1-1221210317.jpg


review your distribution point settings on a fast or slow lan...

Resized to 98% (was 714 x 550) - Click image to enlargeAttached Image: monthly_09_2008/post-1-1221210505.jpg


customise the interaction by setting the time interval to 15 minutes

Resized to 98% (was 714 x 550) - Click image to enlargeAttached Image: monthly_09_2008/post-1-1221210588.jpg


review the security instance/class rights

Resized to 98% (was 714 x 550) - Click image to enlargeAttached Image: monthly_09_2008/post-1-1221210890.jpg


we will get an Advertisement summary, click on next to finish

Resized to 98% (was 714 x 550) - Click image to enlargeAttached Image: monthly_09_2008/post-1-1221210970.jpg

Microsoft MVP 2010 - ConfigMgr
My linkedin profile at > linkedin.com
Follow me on Twitter > ncbrady
Follow windowsnoob.com on Twitter > windowsnoob
My blog on myITforum
0

#4 User is offline   anyweb


  • Administrator
  • PipPipPip
  • Group: Root Admin
  • Posts: 3,252
  • Joined: 28-September 06
  • Gender:Male
  • Location:Sweden
  • Interests:Deploying Operating systems and more with System Center Configuration Manager
Posted 12 September 2008 - 09:19 AM
Step 4. Create and Update Distribution point

In SCCM Configuration Manager console, highlight the package we created in Step 1 and right click on it, choose Distribution Points/New Distribution Point.

Attached Image: monthly_09_2008/post-1-1221216247.jpg

when the welcome to New Distribution Points wizard appears click Next

Resized to 98% (was 714 x 530) - Click image to enlargeAttached Image: monthly_09_2008/post-1-1221216529.jpg


Select your SCCM server from the list and click next

Resized to 98% (was 714 x 530) - Click image to enlargeAttached Image: monthly_09_2008/post-1-1221216642.jpg

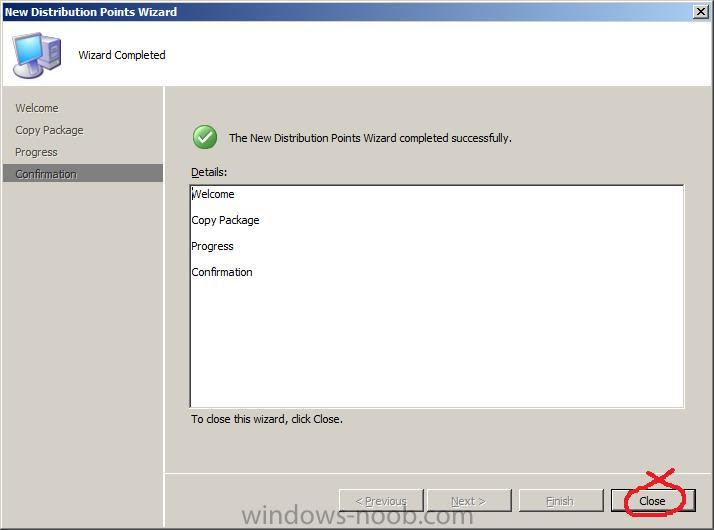

review the summary and click close

Resized to 98% (was 714 x 530) - Click image to enlargeAttached Image: monthly_09_2008/post-1-1221216710.jpg


Now we need to Update the distribution point we've just created with our advertisement package so right click on distribution points and choose update distribution points

Attached Image: monthly_09_2008/post-1-1221214840.jpg

answer yes when prompted

Attached Image: monthly_09_2008/post-1-1221214936.jpg

To speed up distribution of the Advertisements you may want to initiate the User Policy Retrieval & Evaluation Cycle and the Machine Policy Retrieval & Evaluation Cycle which are in the Actions tab of the Configuration Manager properties in control panel (on your client computers....)

Attached Image: monthly_09_2008/post-1-1222071283.jpg

Below are some screenshots of Firefox and Office packages being deployed to the sccm client computer

New Program Ready (Office)

Attached Image: monthly_09_2008/post-1-1222152941.jpg

Resized to 73% (was 958 x 570) - Click image to enlargeAttached Image: monthly_09_2008/post-1-1222153174.jpg


Assigned (firefox)

Attached Image: monthly_09_2008/post-1-1222152959.jpg

Firefox

Attached Image: monthly_09_2008/post-1-1222152947.jpg
